AUTOMATIC

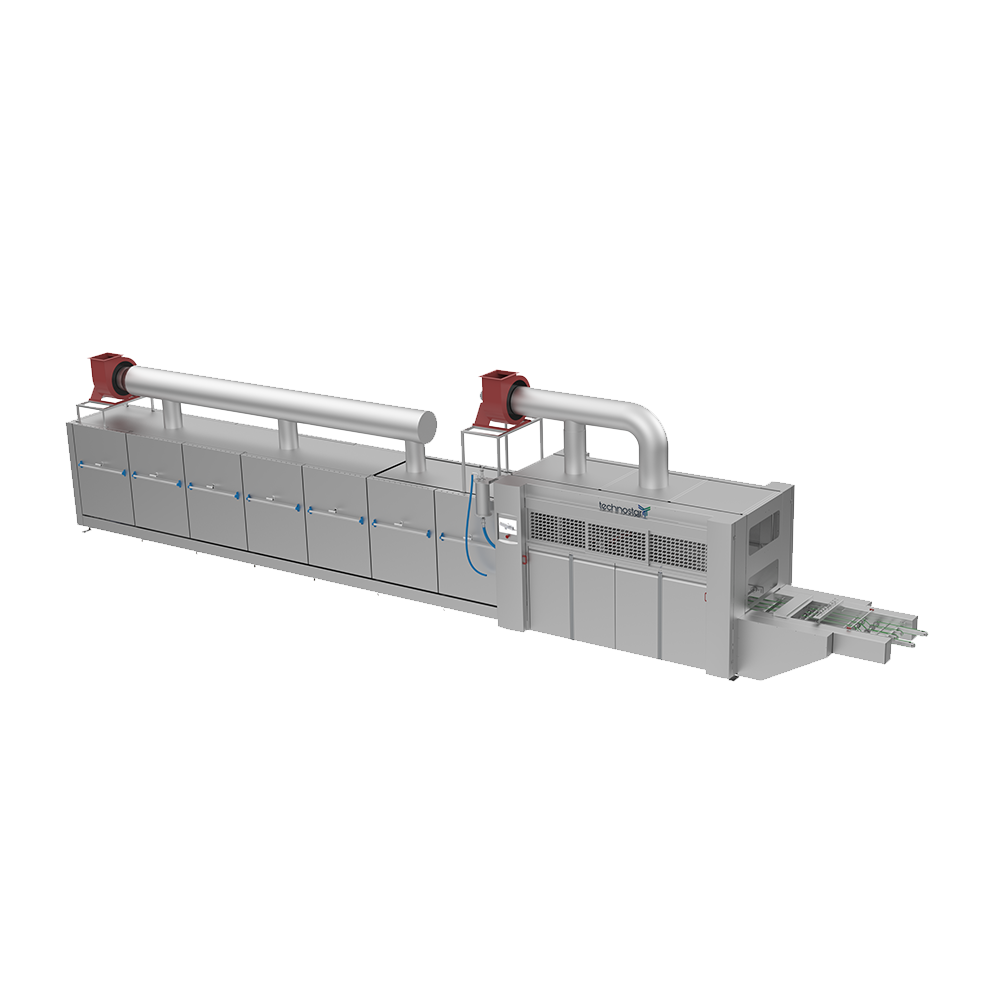

WAFER BAKING OVEN
It is the section where the material is poured onto the wafer molds by means of pumps from the kitchen unit and then the baking process takes place. In these ovens, wafer sheets can be prepared for the next process in a hygienic way without human touch, fully automatically.
Technical Specifications
NUMBER OF MOLDS40, 60, 90, 120

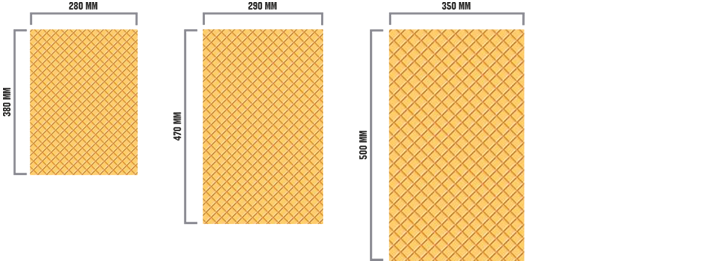

MOLD SIZE280x470, 350x500, 500x750
MOLD COATINGNickel
CAPACITY25-30, 38-40, 55-60 sheets/minute
CONSUMPTION (Gas)40-55 m3/hour
ELECTRIC POWER16,5 kW
VOLTAGE380V – 3 Phases N Pe – 50Hz
AIR PRESSURE6 Bar
ask for an offer
[]
