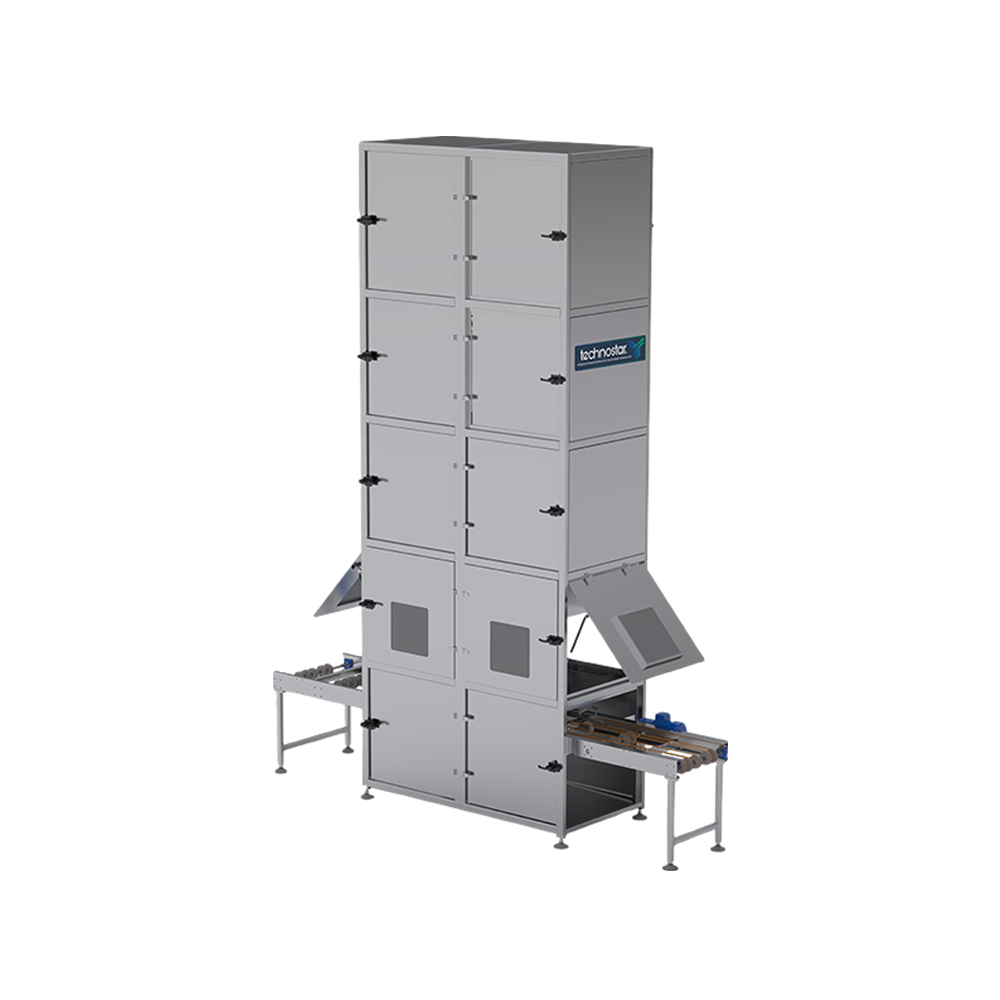

Wafer Book Cooling Tower
It is the cooling section used to cool the hot cream spread between the wafer block and to give crispness to the wafer block before cutting. The chassis, covers and conveyor system are completely made of stainless steel. Thanks to its special design, maintenance and cleaning is very simple.
Technical Specifications
COOLING FEATURESemihermetic Type 7 hp Cooling& Air Condenser R404a
COOLING GASFreon R404a
EVAPORATOR FEATUREVertical Type Special Produced Coolant Fan, Defrost And Condensate Evaporator
COOLING DEGREE CAPACITY2 Cooling Units, 2x13.410 = 26.820 watt = 18.000 kcal/H
COOLING SYSTEM EQUIPMENT2 7hp Compressors, 2 Double Cooling Fans, Thermostatic Expansion Valves, Digital control of heat, condensation and evaporation with solenoid valve
COOLANT EFFICIENCYCop:2.19 (Compressor performance coefficient)
POWERApprox. 21 kW
WIDTH1.500 mm
LENGHT3.800 mm
HEIGHT3900 mm
