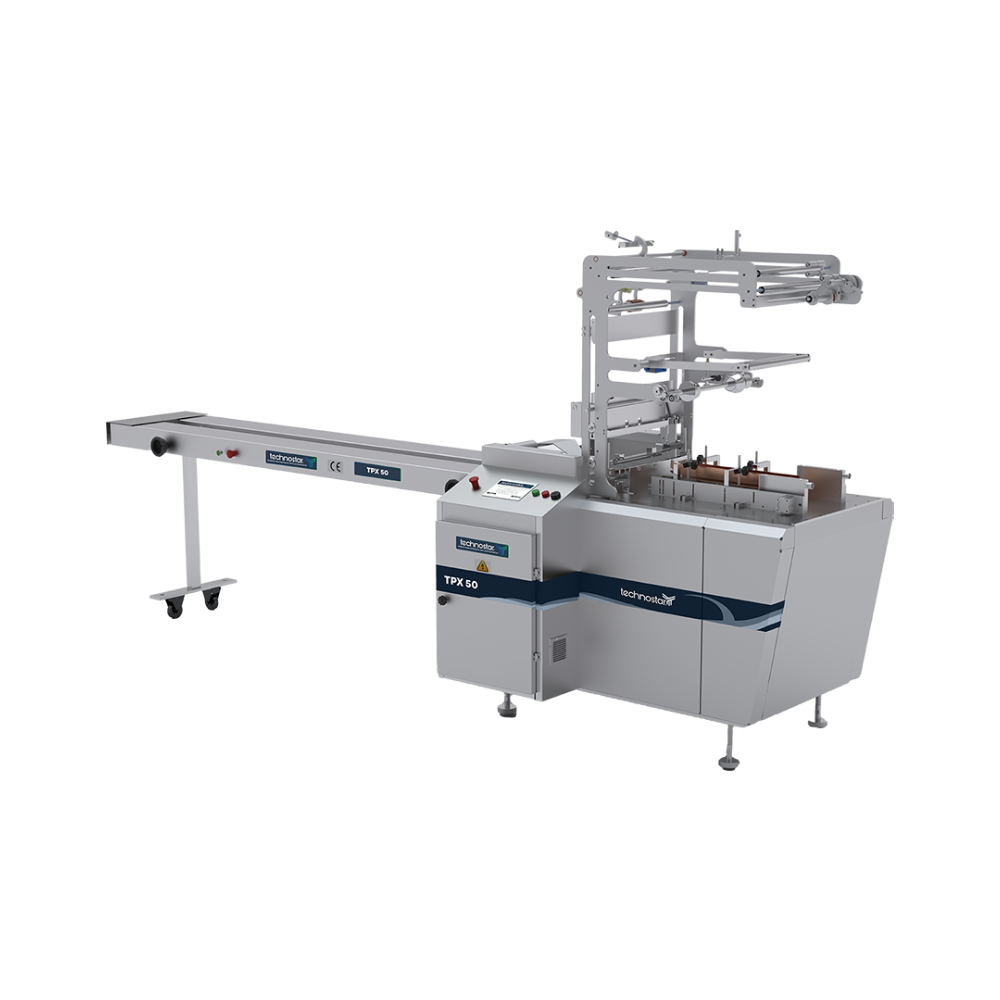

TPX 50

OVER WRAPPING ENVELOPE (X-FOLD) TYPE PACKAGING MACHINE

Envelope Type Packing Machine is a machine that allows the products of different sizes to be stored for a long time by packaging them with the help of transport, by wrapping from the top and sealing from the forehead, taking into account the wishes of the customer. The machine is designed for single and multiple product packaging. Easy opening system and date printing unit can be added optionally.

Technical Specifications

BOBBINE GROUPMANUAL
PRODUCT TRANSPORT SYNCHRONAUTOMATIC
PHOTOCELL ADJUSTMENTAUTOMATIC
CHASSISST37+AISI304
OPERATOR SCREENCOLOR TOUCH SCREEN 5.7’’
ADHESIVE FEATUREHOT
FEEDING TYPEMANUAL
SUPPLY VOLTAGE380V
CAPACITY30-50 PACK/ MIN
TOTAL INSTALLED POWER3,5 kW
NUMBER OF AC MOTOR1
NUMBER OF SERVO MOTOR1
PNEUMATICFESTO
LONGITUDINAL HEATER POWER400 W (220 volt)
SIDE HEATER POWER3 x 200W (220 volt)
MOTOR POWER1,1 kW
MOTOR VOLTAGE3 Phases 220V
CONTROL CIRCUIT24V DC 3A Fuse-Protected
CONTROL FEED220V,24V DC
