TPF 230

HORIZONTAL FLOWPACK ROLL BREAD PACKAGING MACHINE

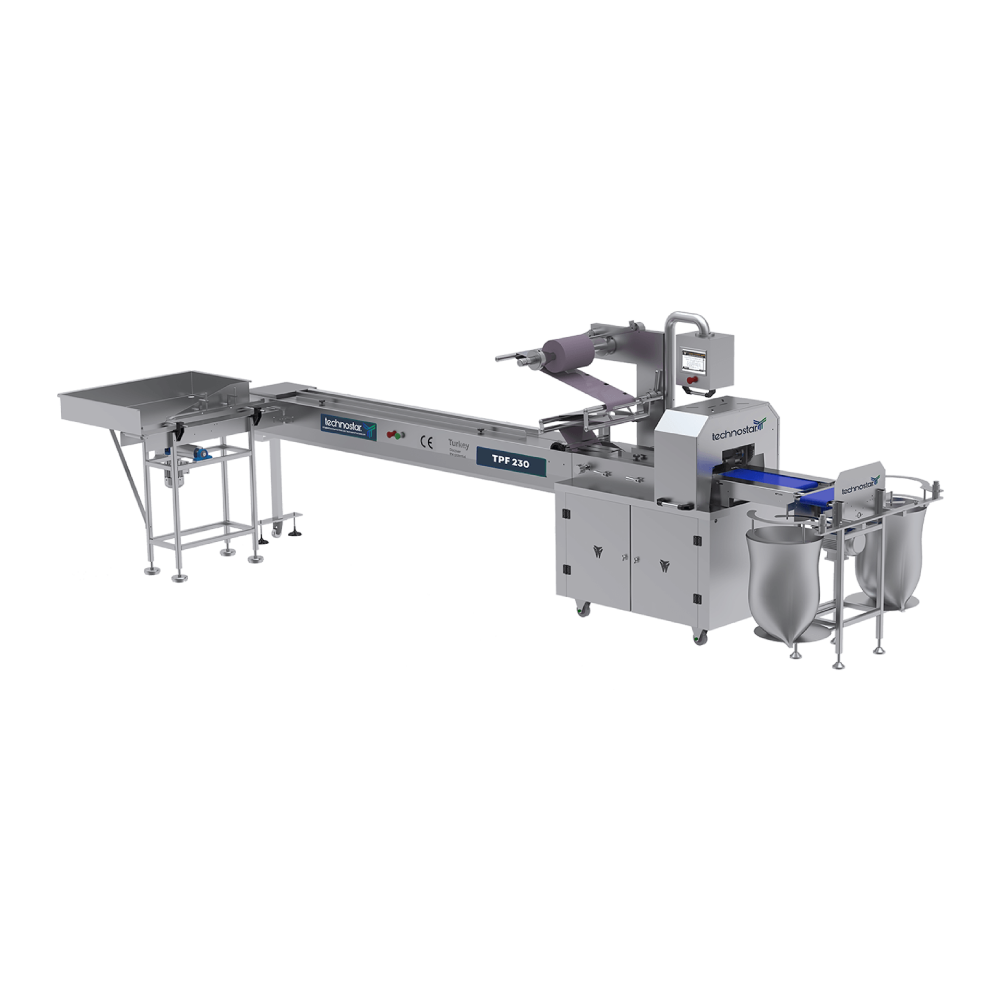

TPF 230-TBS Horizontal Packing Machine is designed to carry out the packaging process of products such as protein bar, chocolate bar, tablet nougat bar as well as bakery products such as roll bread, sandwiches, hamburgers. It can only be designed with conveyor feed. Thanks to the bagging system on the right and left sides of the output belt and the help of the counter, the desired number of products are filled into the bags.

Technical Specifications

TOTAL INSTALLED POWER6 KW
SUPPLY VOLTAGE380 V
CURRENT CONSUMED16 A
DISC HEATER POWER2 x 600 W
JAW HEATER POWER2 x 600W
MOTOR POWER2 x 1,1 KW
MOTOR VOLTAGE3 Phases 220 V
CONTROL CIRCUIT24 V DC
ELECTRICAL CONDUCTION TO HEATERSWith Collector, Brush and Charcoal
